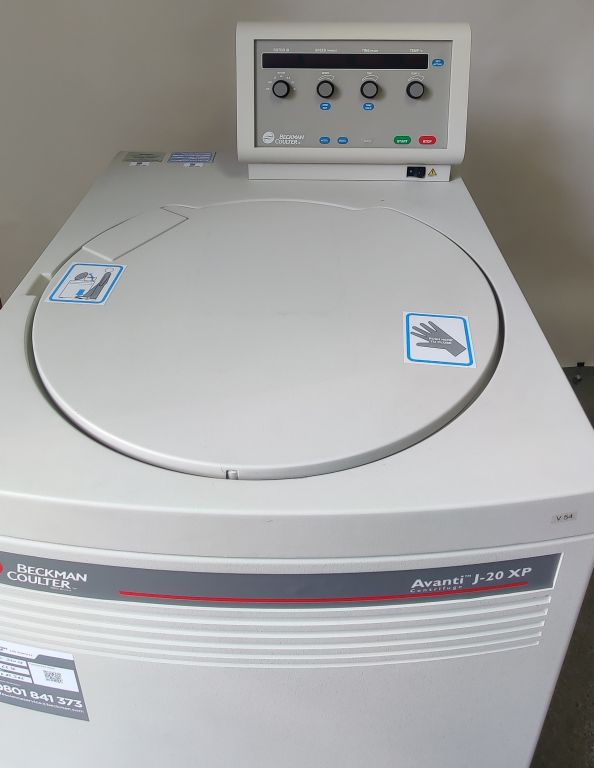

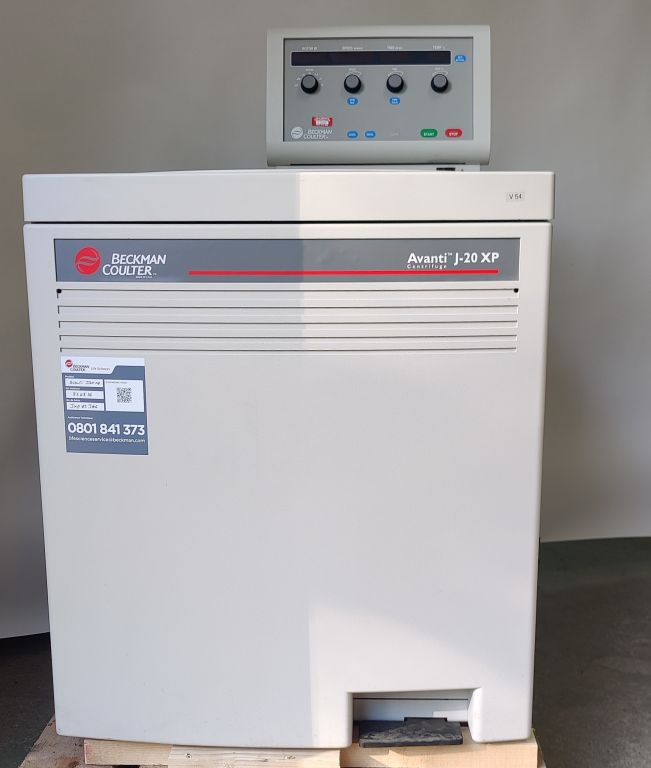

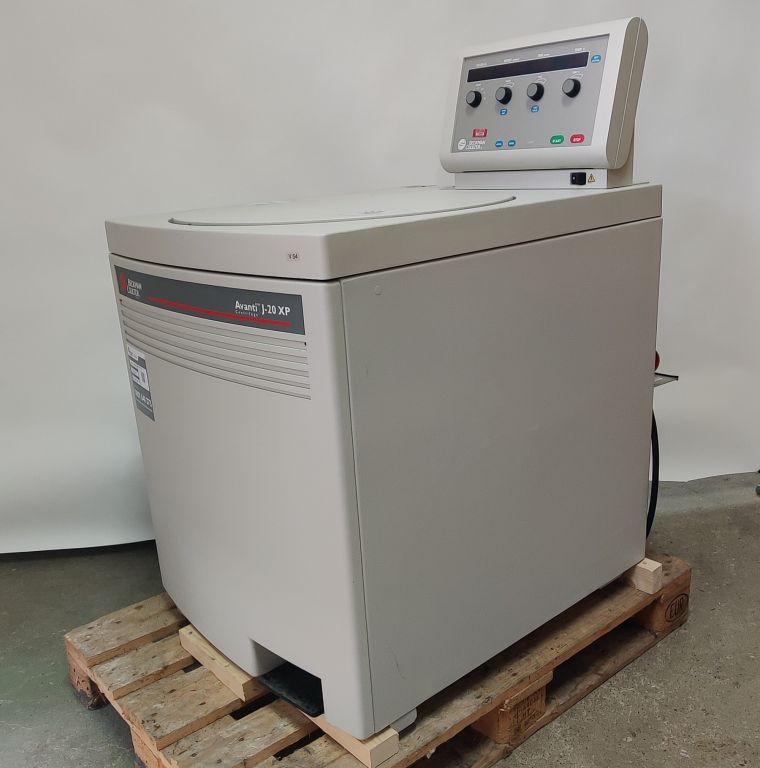

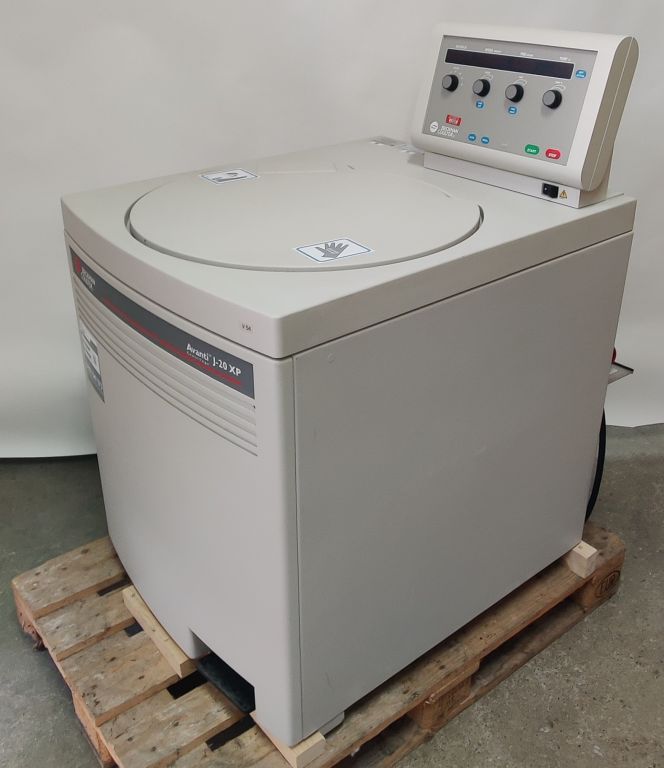

The Avanti J-20XP centrifuge is a floor-mounted, refrigerated Expanded Performance centrifuge that generates the centrifugal forces required for a wide range of applications. In combination with one of Beckman Coulter's numerous J Series high-speed rotors, it is suitable for the following applications, among others:
• Routine tasks such as sample preparation, pelleting,
extractions, purifications, concentrations, phase separations,
as well as column and filter centrifugations
• Rapid sedimentation of protein precipitates, large particles
and cell debris
• Preparation of subcellular particles such as mitochondria,
nuclei, and unpurified microsomes
• Separation of blood cells and cellular components
• Gradient separation, e.g., Ficoll-Hypaque1 and Percoll1
The centrifuge is microprocessor-controlled and enables interactive operation.2 Design features include a brushless, switchable reluctance drive motor,3 an automatic rotor identification system, the FRS (Friction Reduction) system, and the temperature control system with automatic temperature control. Temperature compensation for all compatible rotors.

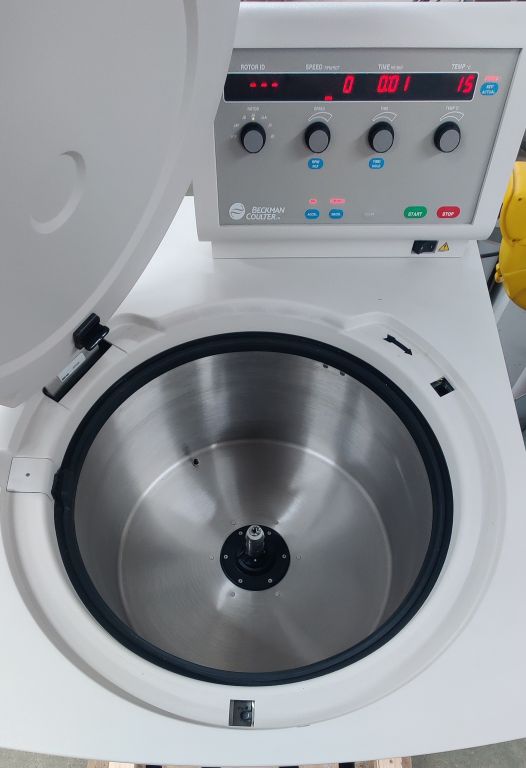

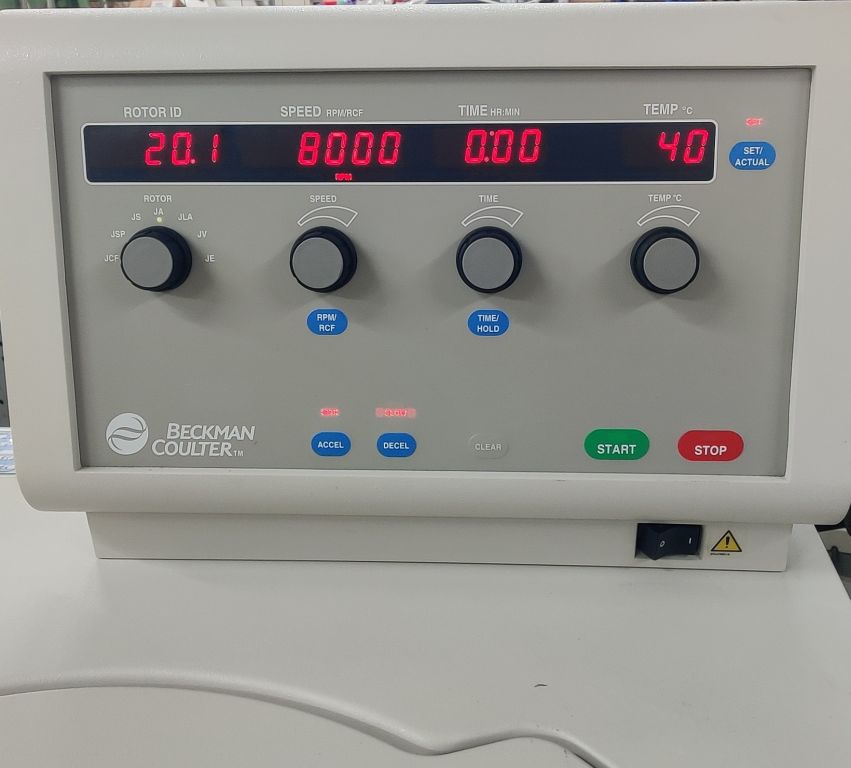

The control panel consists of a digital display that can be toggled between current centrifuge values or user-entered settings, rotary knobs for parameter entry, and additional buttons for instrument control. Diagnostic messages on the control panel illuminate to alert the user to problems that occur during operation.
Technical Specifications:
Speed range 100 to 26,000 rpm
Elutriation speed range 0 to 5,000 rpm
Speed display from 0 to 10,000 rpm
Time range up to 180 minutes, or continuous operation (HOLD)
Temperature range -10°C to +40°C
Ambient temperature range 16 to 38°C (60 to 100°F)
Coolant: Refrigerant 404A (HFC)
Acceleration maximum or slow
Deceleration maximum, slow, or off

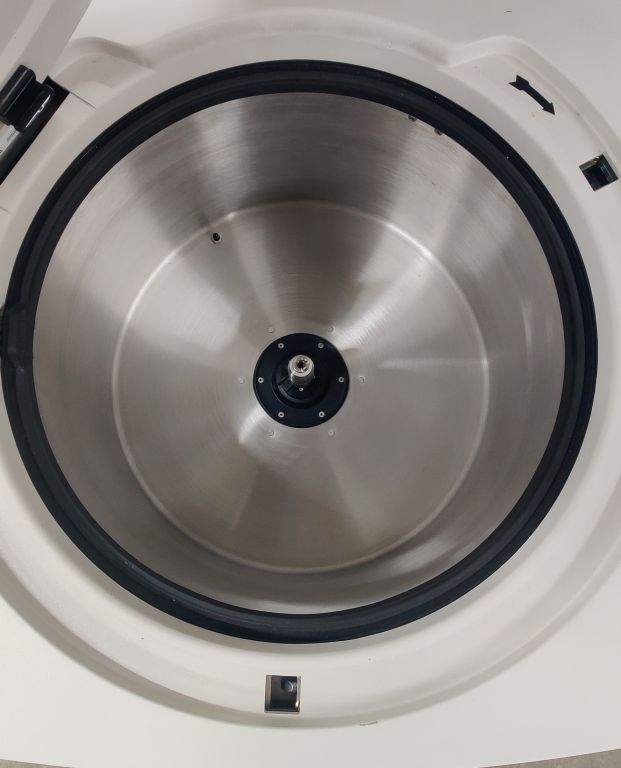

Rotor chamber diameter 51.3 cm
Width 71 cm
Depth 86 cm
Height, lid closed 86 cm
Weight 290 kg
Stationary conditions 2.0 kW
Humidity limits < 95% (non-condensing)
Noise level at 26,000 rpm 57 dBa
Electrical ratings: 220/380 V appliance + neutral, three-phase 313 to 457 V + neutral, 16 A, 50 Hz
Class I power supply
Condition: Used, very good
