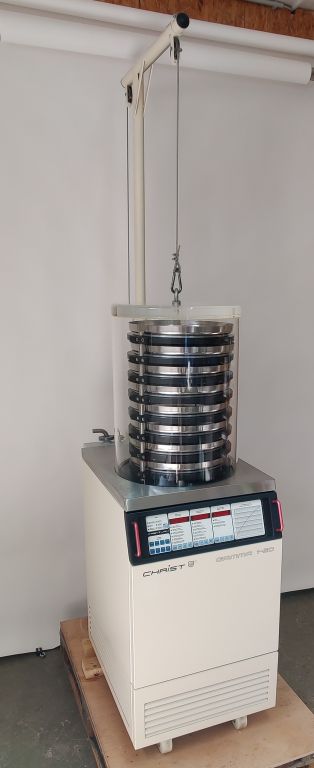

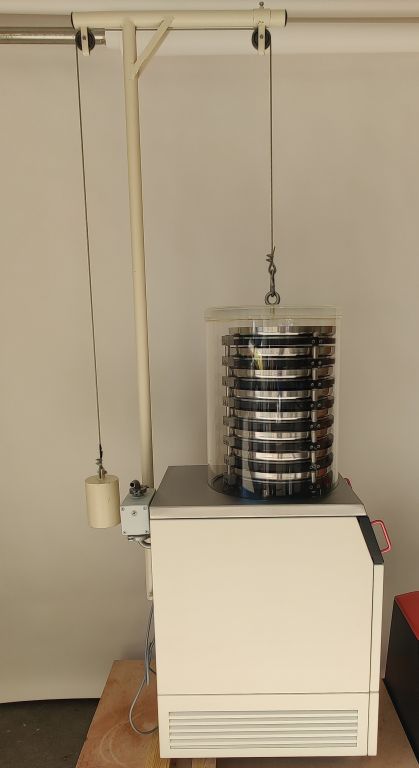

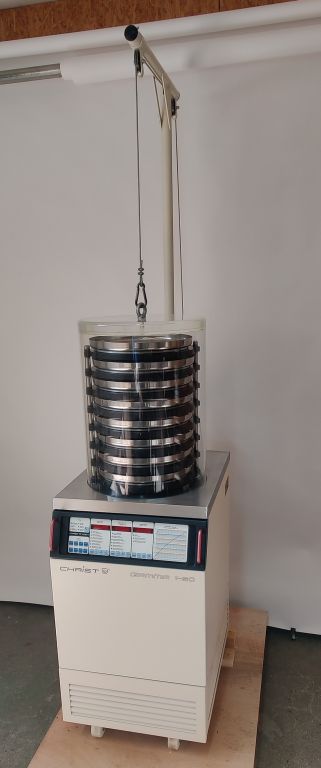

Christ GAMMA 1-20 Freeze Dryer
The GAMMA 1-20 freeze dryer is a high-performance, universally applicable laboratory and industrial system for freeze-drying solid or liquid starting materials in ampoules, vials, glass flasks, plasma bottles, or trays. All process steps required for freeze-drying can be performed in the system.
- Freezing of products according to freely selectable time and temperature limits
- Freeze-drying (sublimation) of products according to freely selectable time, temperature, and pressure limits
- Subsequent drying of products at freely selectable time and temperature limits and a high final vacuum to remove capillary and molecularly bound water
The GAMMA 1-20 freeze-dryer is suitable for freeze-drying, for example, bacterial and viral cultures, blood plasma, serum fractions, antibodies, sera, vaccines, and pharmaceutical products such as chloramphenicol, streptomycin, vitamins, enzymes, and plant extracts for biochemical testing.
Technical specifications:
Dimensions (WxHxD): 550x960x730mm
Weight: approx. 205 kg
Electrical connection: 230 V / 50 Hz
Power consumption: max. 1.8 kVA
Max. current consumption: approx. 8 A
Ice condenser capacity: max. 20 kg
Ice condenser output: max. 15 kg/24 h
Ice condenser temperature: approx. -54°C
Shelf temperature control: approx. -45°C to +99°C
Condition: Used, very good
