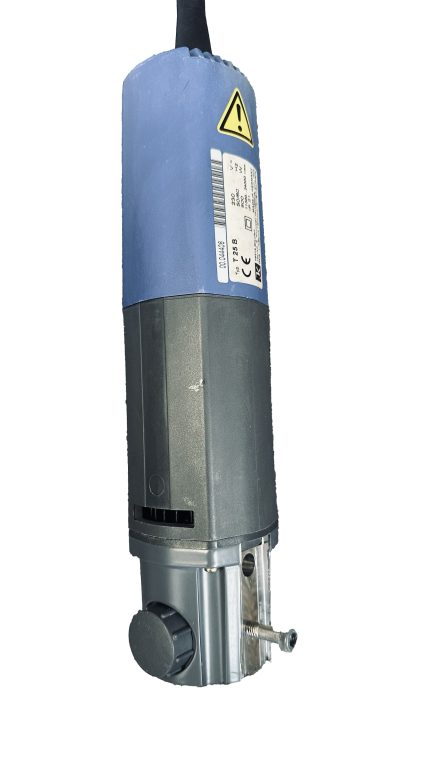

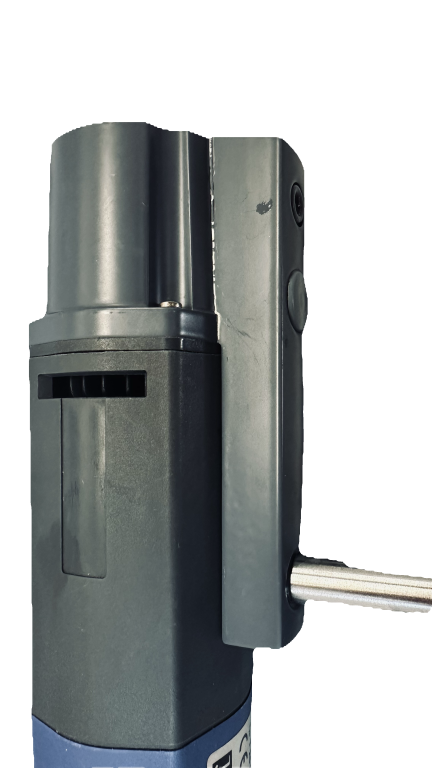

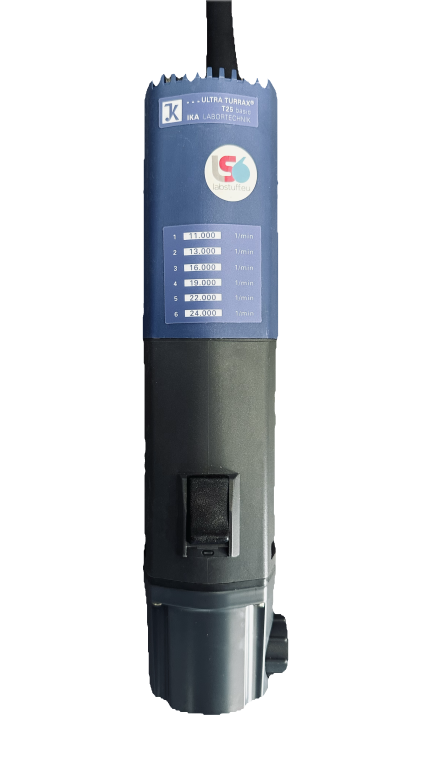

The ULTRA-TURRAX® T 25 basic are dispersion units which, in connection with a dispersion tool, manufacture emulsions and dispersions. The dispersion devices should be operated on a laboratory stand.
You have acquired a high-quality product. Used in combination with an S 25 series dispersion tool, the drive unit is a high-speed dispersing and emulsifying unit capable of handling free-flowing and liquid media in batches.
Dispersion is the dissolution and diffusion of a solid, liquid or gaseous phase in a continuum that is not consolute with that phase.
Technical Data
| Speed range |
6.500 - 24.000 rpm |
| Speed display |
Scale |
| Speed variation on load change |
< 6% |
| Perm. ambient temperature |
5 - 40 °C |
| Perm. humidity |
80 % |
| Perm. on time (drive unit) |
100 % |
| Protection to DIN 40050 |
IP20 |
| Power consumption |
500 W |
| Power output |
300 W |
| Design voltage |
230 ±10% VAC |
| Frequency |
50 / 60 Hz |
| Noise level(wituout disp. tool) |
73 dbA |
| Dimensions (drive) WxDxH |
65x80x240 mm |
| Dimensions (boom) |
Ø13 / L160 mm |
| Weight |
1,6 kg |
| Contamination level |
2 |
| Protection class |
II |
| Overvoltage category |
II |
| Operation at a terrestrial altitude |
max. 2000 m above sea level |
