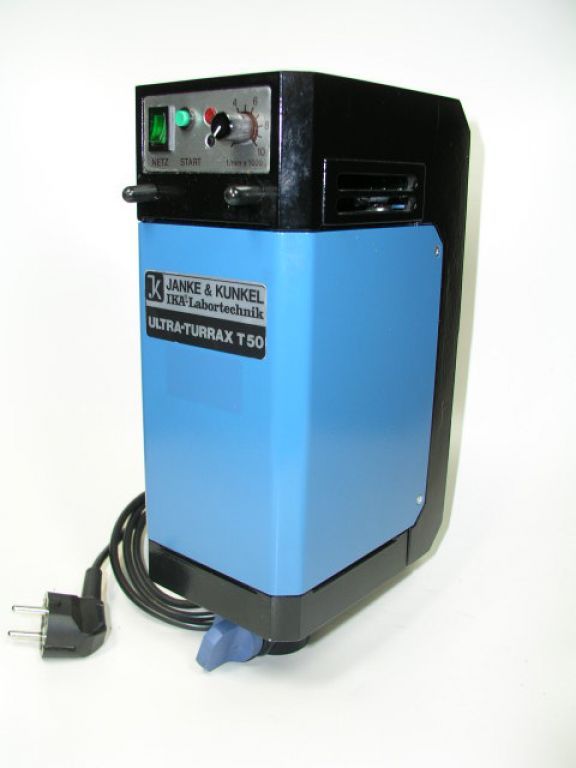

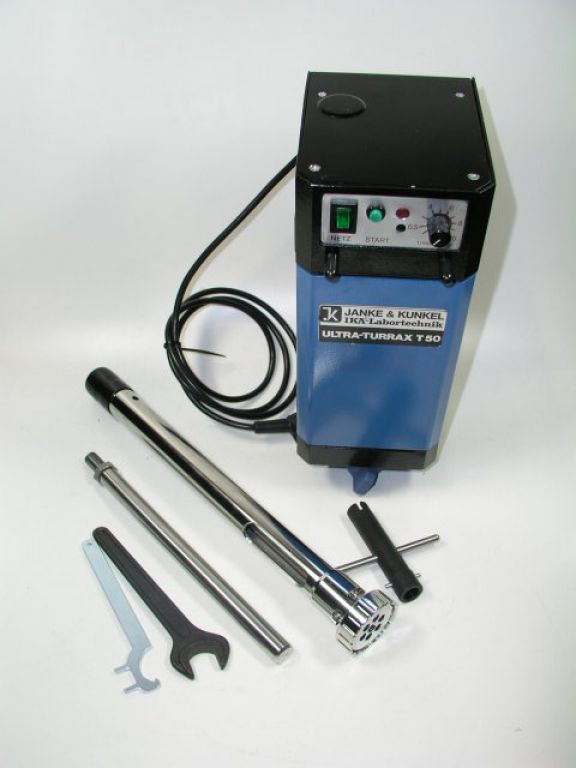

IKA Ultra Turrax T50
Dispersing machine with used dispersing, for example, S 50 N - G 45 ST
Fully functional, super Constitution.
High-performance for volumes from 0.25 30 l (H2O).
- Three types of shaft bearings
- A plurality of rotor-stator configurations
- Use as a "high-speed" agitator Agitator shaft R 50 (not included)
- Infinitely variable drive for continuous operation
- Reprod. Works by constant speed even with viscosity changes
- Facilitate exchange of dispersing elements
- Electronic safety circuit and smooth start
- As standard with tachometer connection
- Wide range of dispersing
Specifications T50:
Motor rating input [W] 1100
Motor rating output [W] 700
Volume range (H2O) min. [L] 0.25
Volume range (H2O) max. [L] 30
Viscosity max. [MPas] 5000
Speed range [1 / min] 500-10000
Speed deviation [%] 1
Speed display scale
Speed control stepless
Noise without [dB (A)] 72
Arm diameter [mm] 16
Boom length [mm] 220
Process type batch
Weight [kg] 6
Permissible ambient temperature range [° C] 5-40
Permissible relative humidity [%] 80
Voltage [V] 230
Frequency [Hz] 50/60
Power input [W] 1100

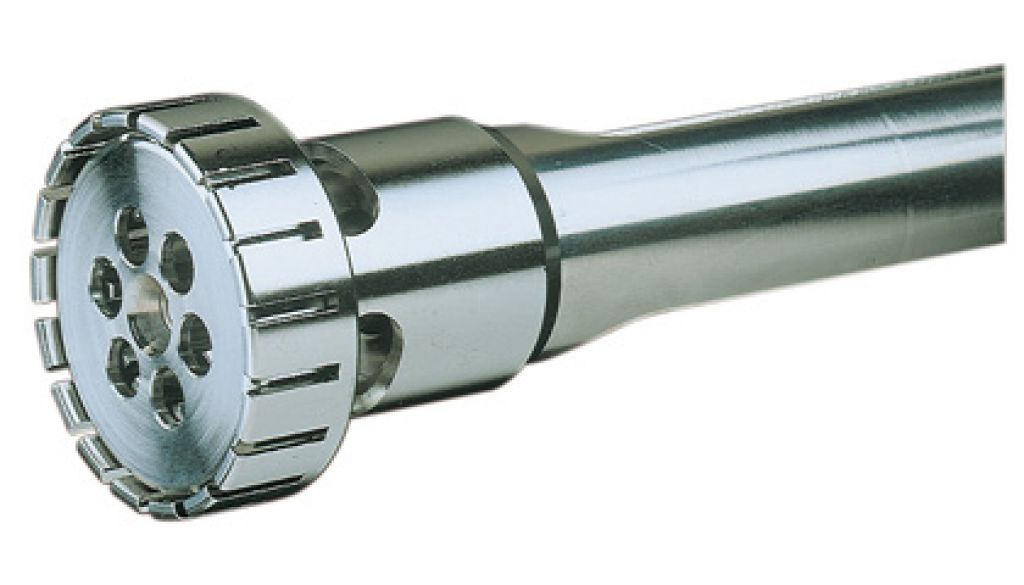

S 50 N - G 45 F Dispersing:
Volume range (H2O) min. 0.25 l
Volume range (H2O) max. 10 l
Diameter 45 mm Stator
Diameter rotor 40 mm
Circumferential speed max. 20.9 m / s
Immersion depth min. 70 mm
Immersion depth max. 250 mm
Installation length 290 mm
Product contact surface made of PTFE, AISI 316L
pH min. 2
pH max. 13
Suitable for solvents yes
Suitable for abrasive substances yes
Operating temperature max. 180 ° C.
Sterilization methods all methods
Ultimate fineness, suspensions min. 10 microns
Ultimate fineness, suspensions max. 30 microns
Ultimate fineness, emulsions min. 1 .mu.m
Ultimate fineness, emulsions max. 10 microns
Condition: mixer and tool is used
