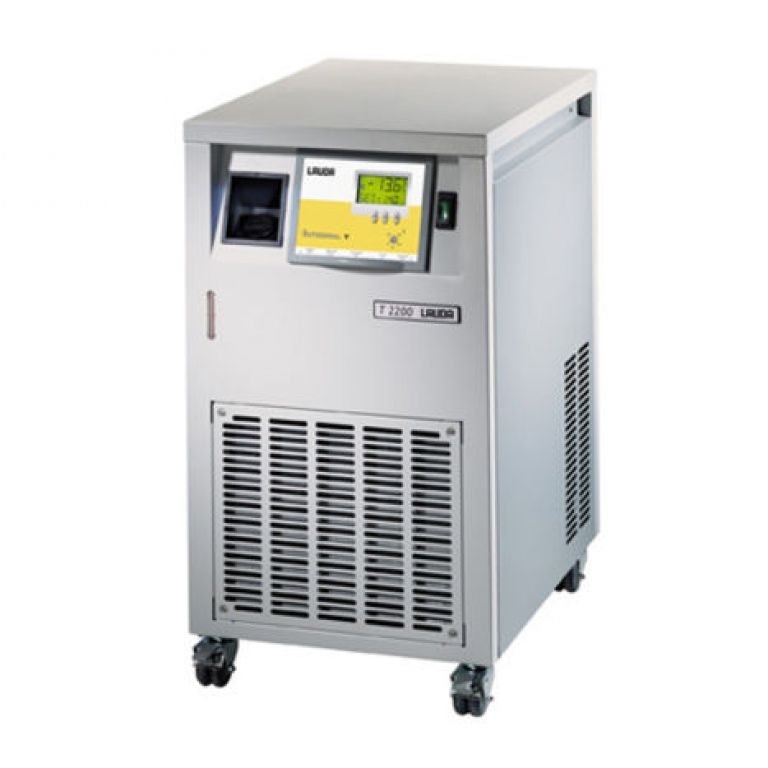

Lauda T2200 integral air cooled Process Thermostat -25° > +120°C
| Technical Data |
|
LAUDA Integral T 2200 |
| Working temperature min. |
°C |
-25 |
| Working temperature max. |
°C |
120 |
| Ambient temperature min. |
°C |
5 |
| Temperature stability |
±K |
0.20 |
| Filling volume min. |
L |
3 |
| Filling volume max. |
L |
7 |
| Cooling output at 20°C measured with ethanol |
kW |
2.20 |
| Cooling output at 10°C measured with ethanol |
kW |
1.80 |
| Kälteleistung bei 5 °C gemessen mit Ethanol |
kW |
1.60 |
| Cooling output at 0°C measured with ethanol |
kW |
1.40 |
| Kälteleistung bei -5 °C gemessen mit Ethanol |
kW |
1.20 |
| Cooling output at -10°C measured with ethanol |
kW |
1.00 |
| Kälteleistung bei -15 °C gemessen mit Ethanol |
kW |
0.80 |
| Cooling output at -20°C measured with ethanol |
kW |
0.60 |
| Cooling output at -25°C measured with ethanol |
kW |
0.35 |

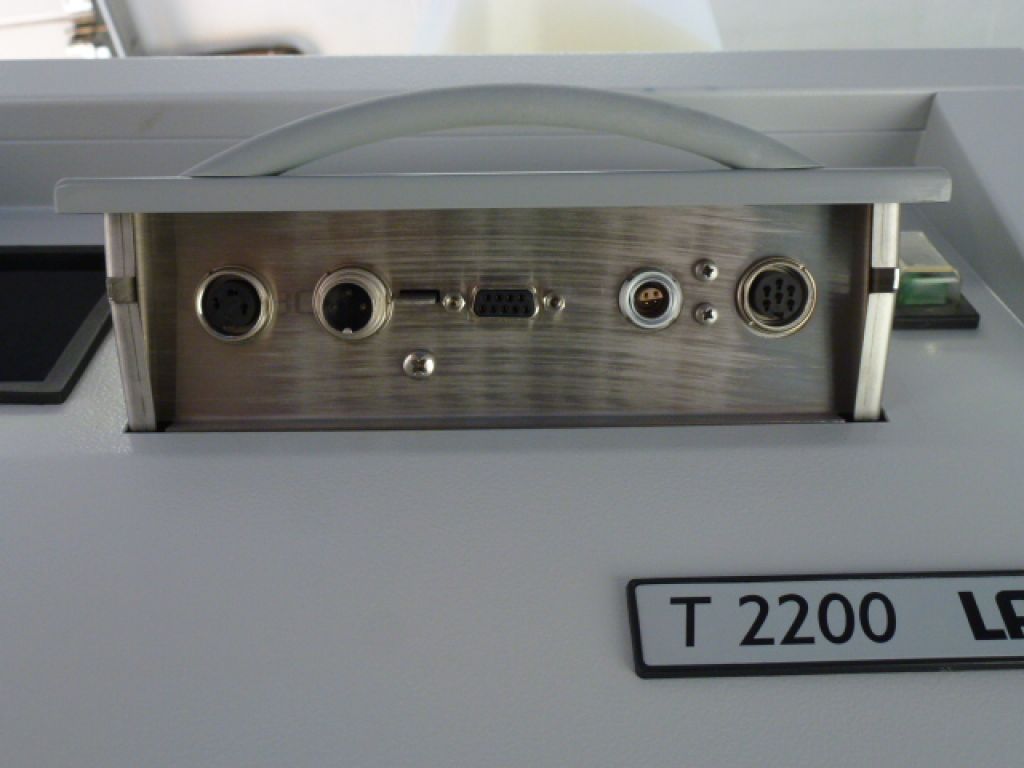

| Interface(s) |
|
RS 232/485; Standby-Kontakteingang; Störungs- (Alarm-) Kontaktausgang; analoge Ein- und Ausgänge; Externe Pt100. |
| Application |
|
external |
| Noise level |
dB(A) |
60 |
| Heater power |
kW |
2.25 |
| Power consumption |
kW |
3.10 |
| Tube size |
|
¾" |

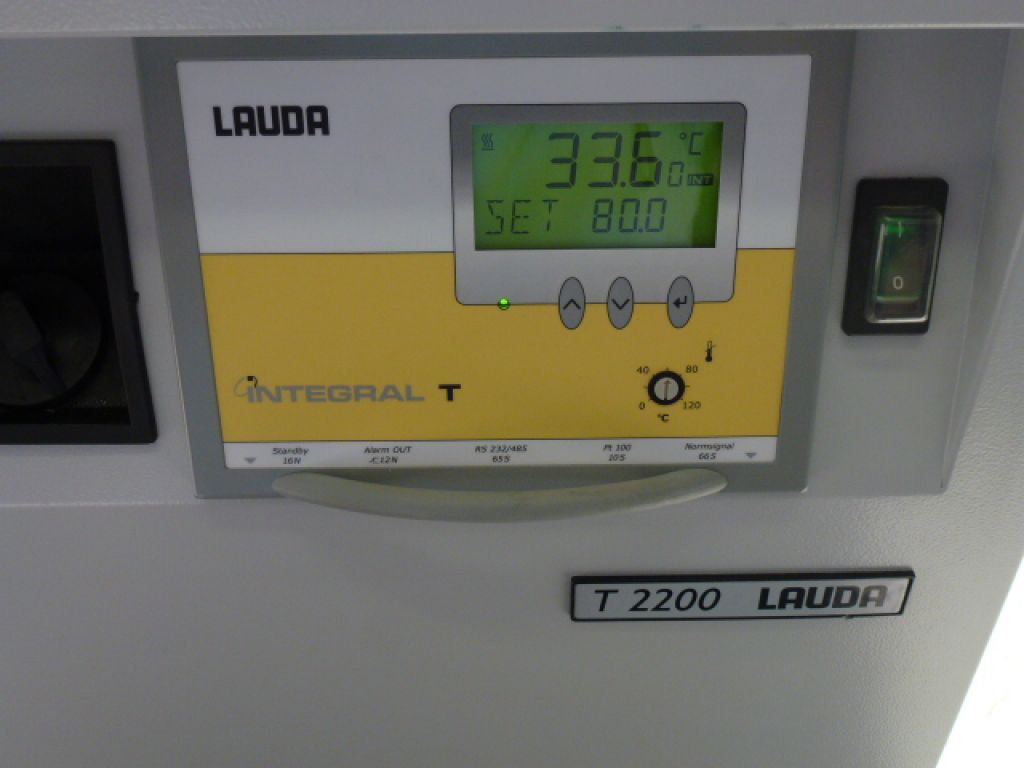

| Display resolution 0,05 |
°C |
0.05 |
| Dimensions (WxDxH) in mm |
|
450x550x790 |
| Pump pressure max. |
bar |
3.20 |
| Pump flow max. (pressure) |
L/min |
40 |
| Pump connection thread |
|
G ¾/(15) |
| Cat No. |
LWP 103 |
