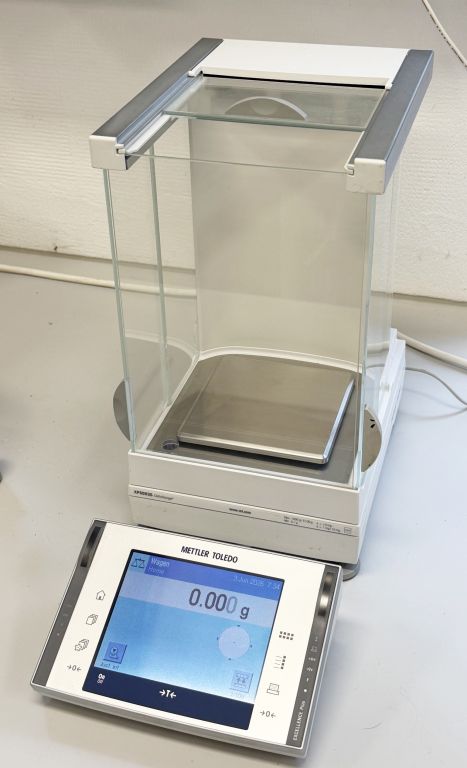

Mettler XP5003S Delta Range /M (verifiable) Precision Balance
Description:
The XP series of precision balances offers superior weighing performance combined with a level of security that meets the requirements of even the most strictly regulated environments. Integrated quality management tools enforce quality guidelines and manage passwords and access rights for up to eight users.
Features and benefits:
• Performance – high-precision mass comparator
• SmartScreen – user-friendly touchscreen
• LevelMatic – to reduce corner load errors
• Draft shield – for improved measurement stability
• WeighCom application – for user-friendly, menu-driven mass comparison processes

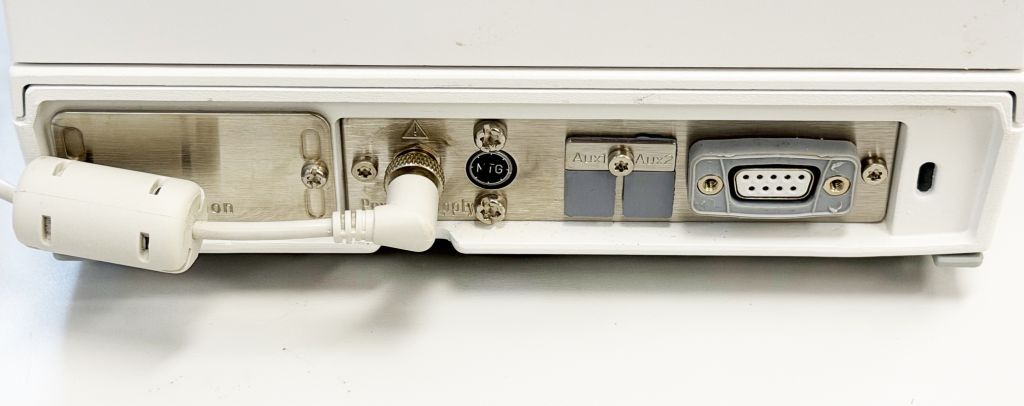

• Connectivity – for fast and easy data processing
Technical specifications:
Capacity: 5,100 g
Readability: 1 mg
Platform size: 127 x 127 mm (W x D)
Repeatability (standard deviation of 10 comparison weighings ABA after drift elimination): 0.8 mg
Typical repeatability: 0.6 mg + 4×10^(−8)•R_gr
Linearity: 3 mg
Typical stabilisation time: 2…10 s
Calibration: proFACT
Calibration with external weight: ≥1000 g
Sensitivity drift: ±10^(−6)
Levelmatic weighing pan: Standard
Clearance above the weighing pan: 235 mm
Feed-through for under-table weighing: Standard
Backlit colour graphic display with touchscreen operation: Standard
WeighCom application for guided mass comparisons: Standard
Temperature (°C): 10…30 °C
Max. temperature change (°/24 h): 0.5
Relative humidity (%) (±2 %): 40–70
Dimensions (WxDxH) / Net weight: 214 x 257 x 363 mm / 7.1 kg
Display unit: 194 x 133 x 58 mm / 1.2 kg
Power supply unit: 108 x 67 x 37 mm / 0.3 kg
Contents:
- Mettler Toledo XP5003S DR /M precision balance
- Power supply
- Protective cover for XP terminal
- User manual for balance
The analytical balance was under contract for its entire service life.
