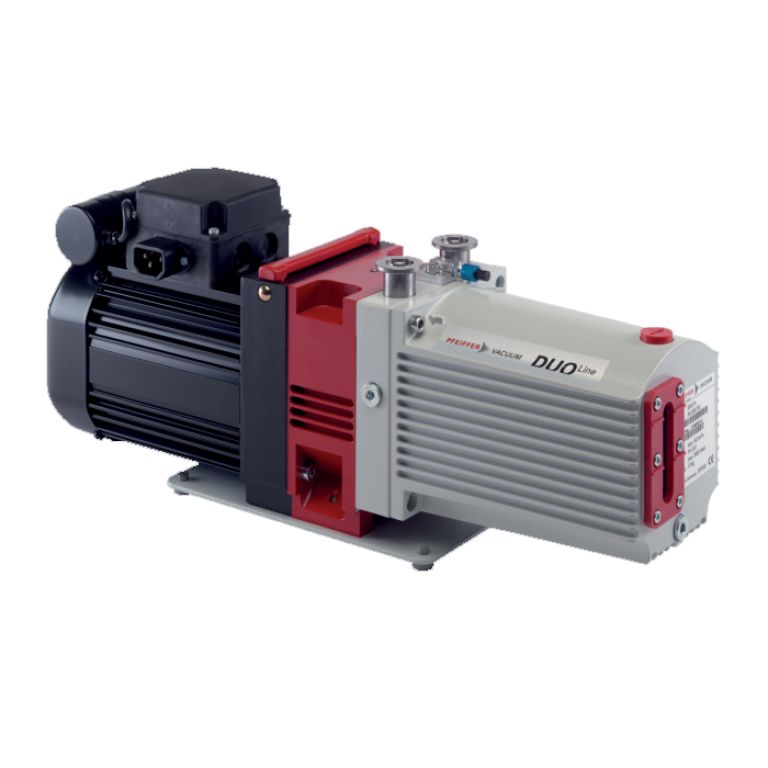

Pfeiffer Vacuum DUO 11 M Rotary Vane Pump, Magnetically Coupled
This Pfeiffer Vacuum DUO 11 M rotary vane pump is new and comes complete.
The two-stage rotary vane vacuum pumps of the Pfeiffer Vacuum DUO series are designed and manufactured to meet the demanding requirements of a wide range of industrial and scientific applications. They are available in standard, magnetically coupled, and corrosion-resistant versions. Unlike the standard pump, the magnetically coupled pumps feature a frictionless magnetic coupling, eliminating oil leaks caused by a wear-prone conventional shaft seal. Thanks to their simple and highly reliable design, the two-stage rotary vane vacuum pumps of the Pfeiffer DUO series offer high performance with high pump stability, are compact, and achieve a maximum vacuum pressure of up to 10⁻³ Torr.
Magnetically Coupled Series – Unlike the standard pump, these products feature a frictionless magnetic coupling. Oil leakage through a conventional shaft seal, which is prone to wear, is impossible with these models.
... Technical Data:
Flange (outer) DN 16 ISO-KF
Flange (inner) DN 16 ISO-KF
Exhaust pressure, max. 1500 hPa
Exhaust pressure, min. 250 hPa
Operating medium P3
Operating medium capacity 0.6 l
Speed at 50 Hz 3000 rpm
Speed at 60 Hz 3600 rpm
Sound pressure level ≤ 55 dB(A)
Final pressure with gas ballast 3 × 10⁻³ hPa
Final pressure without gas ballast 3 × 10⁻³ hPa
Weight 19 kg
Cooling method: Standard air
Leakage rate safety valve ≤ 1 × 10⁻⁵ Pa m³/s
Magnetic coupling: Yes
Rated power 50 Hz 0.25 W
Rated power 60 0.30 W
Power supply: 50 Hz 180–265 V
Power supply: 60 Hz 180–265 V
Power cord: No
Pump speed at 50 Hz: 9.0 m³/h
Pump speed at 60 Hz: 10.5 m³/h
Switch: Yes
Protection class: IP 55
Ambient temperature: 12–40 °C
Condition: New
