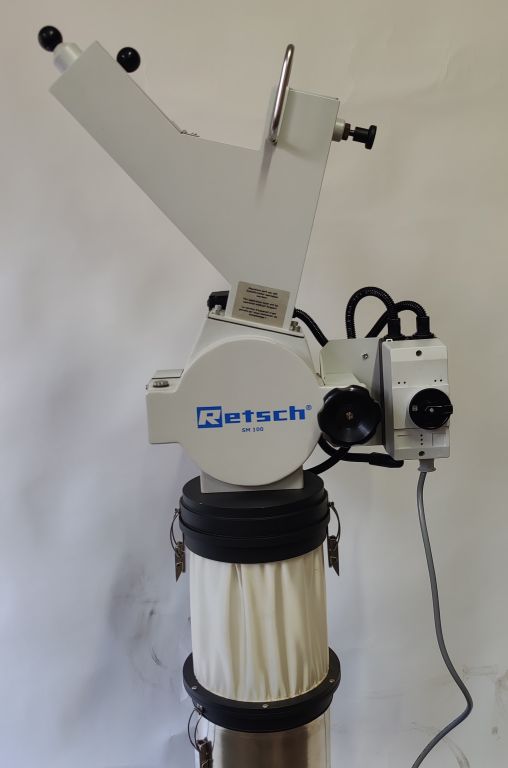

The SM 100 is the cost-effective basic model among the RETSCH cutting mills. It is suitable for grinding samples that do not require extremely high forces. The mill was designed primarily for routine applications. It is easy to operate and can be mounted on a stable table or on the optional base frame.
TECHNICAL DATA
Areas of application: Cutting and comminution
Areas of application: Agricultural science, biology, chemistry/plastics,
food, mechanical engineering/electrical engineering, medicine/pharmaceuticals, environment/recycling
Feed material: soft, medium-hard, elastic, fibrous
Comminution principle: Shearing, cutting
Feed particle size: < 60 x 80 mm
Final fineness: 0.25 - 20 mm
Speed at 50 Hz (60 Hz): 1,500 rpm
Rotor circumferential speed: 9.4 - 11.4 m/s
Rotor diameter: 129.5 mm

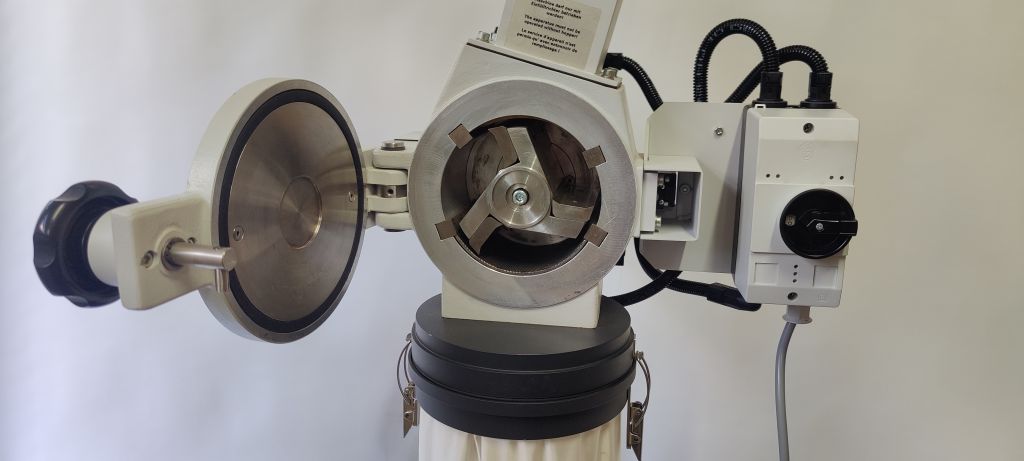

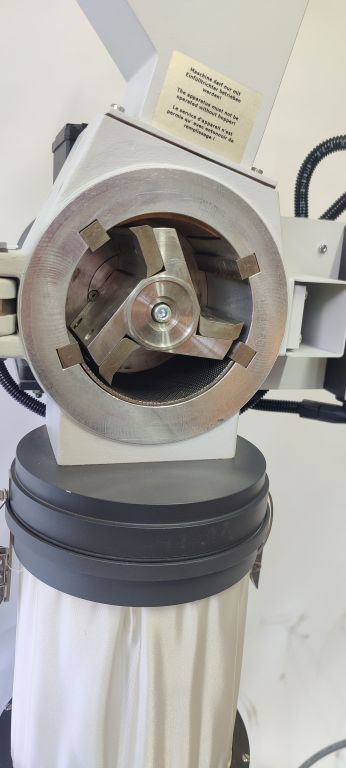

Rotor type: Parallel-cut rotor
Funnel types: Standard
Grinding tool material: Stainless steel, steel for heavy-metal-free comminution, tungsten carbide
Sieve sizes: Trapezoidal perforation: 0.50 / 1.00 mm
Collection container capacity: 5 l
Collection unit: 0.5 l

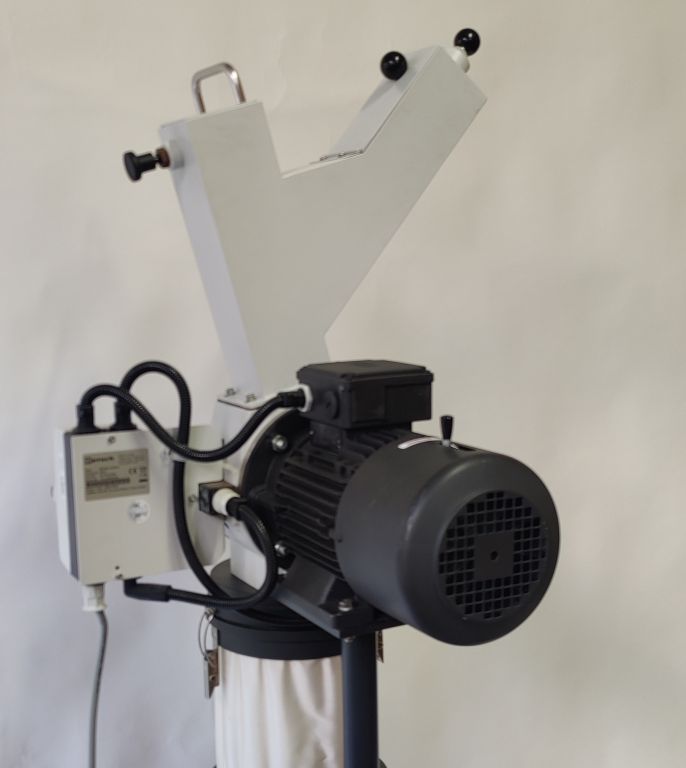

Drive: Three-phase motor
Drive power 1.5 kW
Electrical connection values: various voltages
Power supply: 3-phase
Protection class: IP 54
W x H x D (closed): 582 x 1675 x 700 mm (with base frame and standard hopper)
Net weight: ~ 73 kg (without hopper, rotor, and base frame)
Standards: CE
Scope of delivery:
- SM 100 comfort granulator

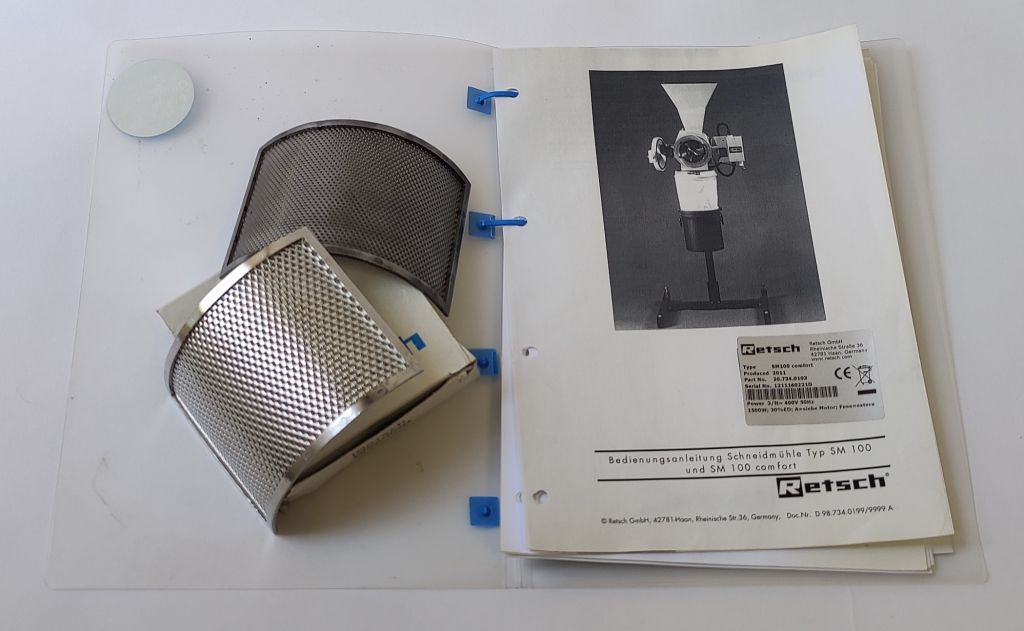

- 0.5 mm trapezoidal bottom sieve
- 1.0 mm trapezoidal bottom sieve
- Standard feed hopper
- Filter hose including comfort flange
- 5-liter collection container

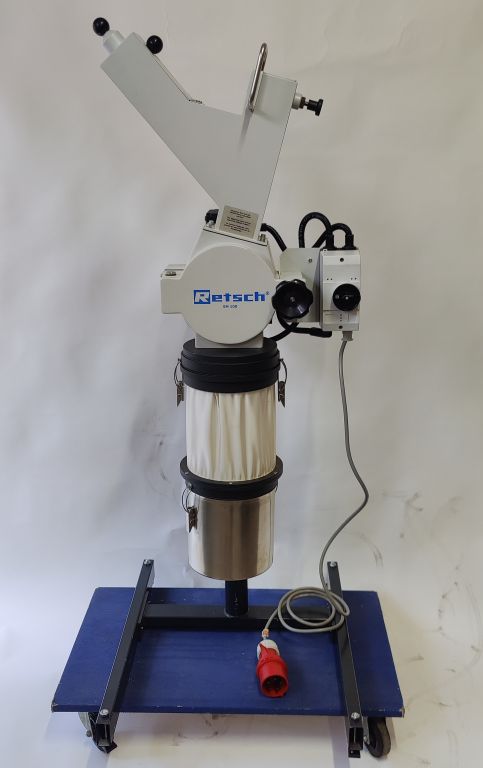

- Base frame for SM 100
Condition: Used, very good
