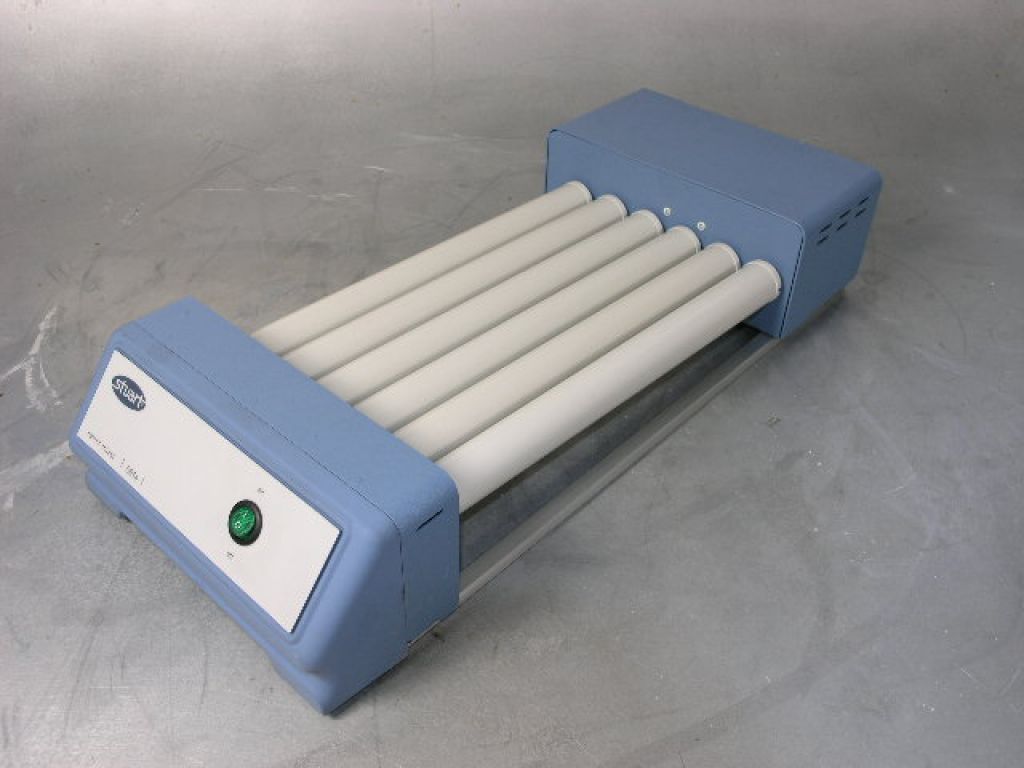

The Stuart SRT6D Roller Mixer is a compact and reliable laboratory roller mixer designed for the gentle and uniform mixing of a wide range of samples and liquids. Its combined rolling and rocking motion continuously keeps samples in motion without requiring aggressive mixing. This makes the unit particularly suitable for applications where thorough mixing with minimal foaming and aeration is desired.
The SRT6D features six parallel rollers, allowing several containers to be mixed simultaneously. A key advantage over the standard SRT6 is its variable speed control from 5 to 60 rpm. This allows the mixing speed to be precisely adjusted to suit the specific sample and application. The integrated digital control provides accurate adjustment of the desired speed and mixing time.
Each of the six rollers measures 340 × 30 mm (L × Ø). The 16 mm rocking amplitude provides a smooth and consistent rolling motion of the containers placed on the rollers. The rollers can be removed for easy cleaning and convenient handling.
The Stuart SRT6D is suitable for a wide range of applications in medical, biological and pharmaceutical laboratories, as well as in research and development. Typical applications include mixing blood samples, reagents, viscous liquids and liquid-solid suspensions. Its gentle mixing action makes it particularly suitable for samples where excessive turbulence or foaming should be avoided.
Technical Specifications
-
Manufacturer: Stuart / Cole-Parmer
-
Model: SRT6D
-
Type: Laboratory roller mixer
-
Number of rollers: 6
-
Speed range: 5–60 rpm
-
Speed control: Variable
-
Rocking amplitude: 16 mm
-
Roller size: 340 × 30 mm (L × Ø)
-
Control: Digital
-
Timer: Integrated
-
Mixing motion: Rolling and rocking motion
-
Power supply: 230 V AC, 50 Hz
-
Power consumption: Approx. 50 W
-
Dimensions: Approx. 565 × 240 × 110 mm (W × D × H)
-
Weight: Approx. 5.1 kg
-
Protection rating: IP20
Versatile and Precise
With its wide speed range of 5 to 60 rpm, the Stuart SRT6D offers excellent flexibility for a variety of mixing applications. Low speeds can be used for particularly gentle mixing, while higher speeds allow for more intensive agitation. The digital control system makes it easy to set and reproduce the desired operating parameters.
The Stuart SRT6D combines a compact design with six mixing rollers, variable speed control and precise digital operation. It provides a versatile solution for the gentle, uniform and reproducible mixing of laboratory samples in everyday laboratory applications.
Condition
The unit is in excellent condition and has been well maintained.
