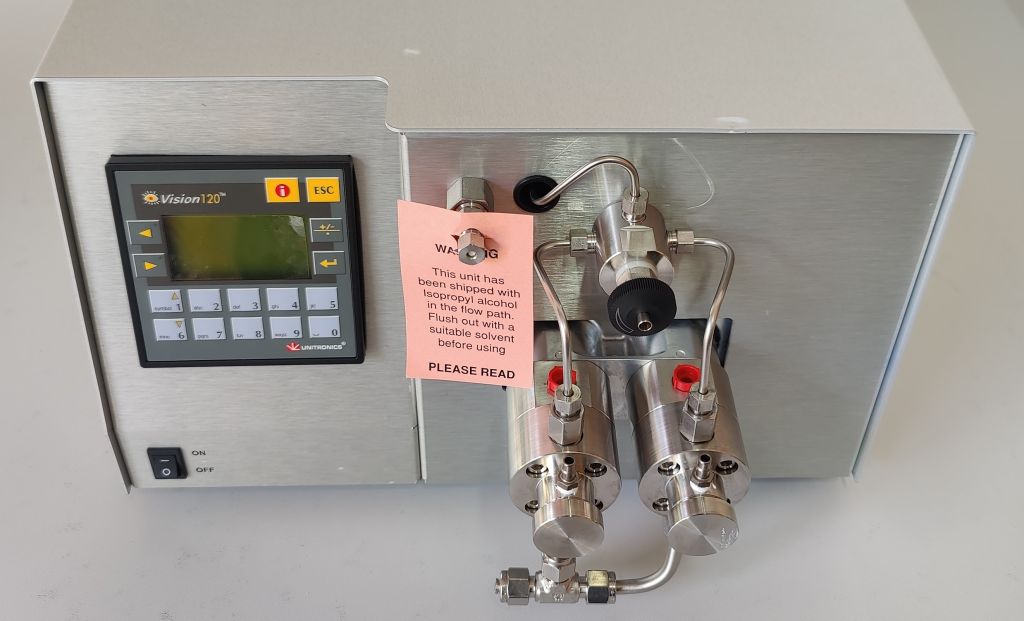

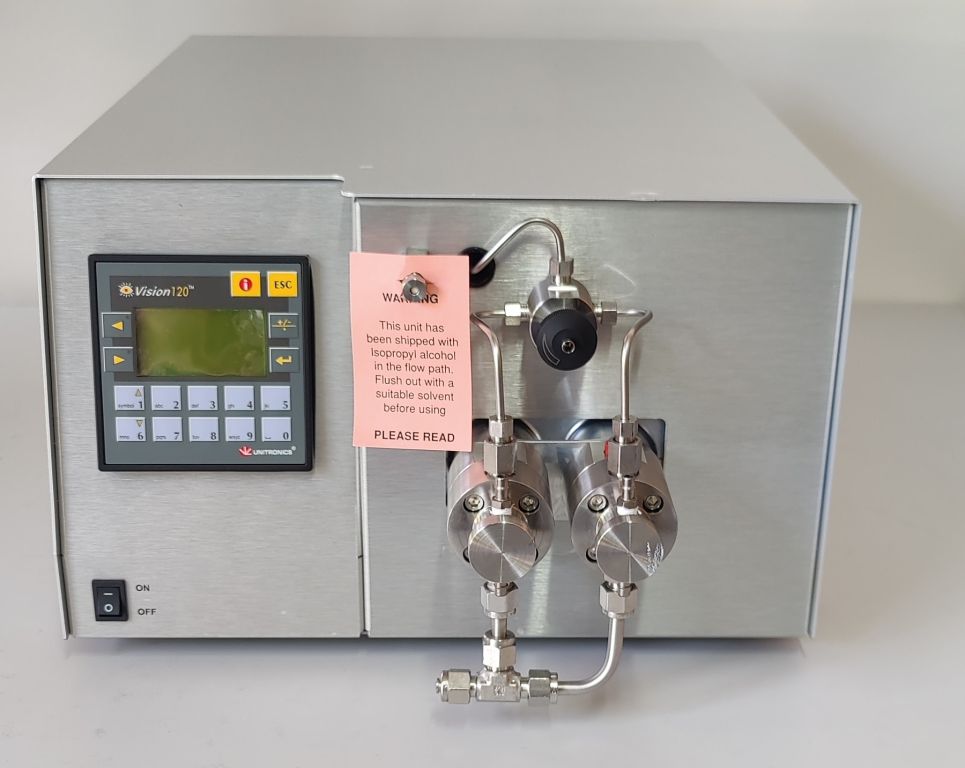

Teledyne ISCO ReaXus® HF Class 300 mL Stainless Steel Pump
High Performance for Your Application
The HF Series pumps are specifically designed to meet the requirements of Preparative Liquid Chromatography (HPLC) and high pressure Process/Metering applications. Available in Stainless Steel or Titanium fluid paths, the HF Series pumps will withstand the toughest applications.
Heavy Duty Design
The HF Series pumps are dual-headed piston pumps with servo motors, belt drives, and reliable eccentric cams. Standard features include an LCD keypad with advanced HMI/PLC interface, and RS-232 for complete control and status monitoring. Prime-Purge Valve, Outlet Filter, and Pressure Transducer are standard.
Wide, Accurate Flow & Pressure Range. These pumps deliver very precise flow rates up to 300 mL/min, with pressures up to 10,000 psi.
Easy Maintenance
All Scientific Systems, Inc. pumps are known for fast, easy maintenance. Check valves, pistons, and seals are readily accessible, and Automatic Piston Wash is standard. These features contribute to reduced down-time and operating expenses.
ReaXus® HF Class 300 mL Pump:
Flow Rate: 0.1 to 300 mL/Minute
Maximum Pressure: 10,000 psi
Material: Stainless Steel Fluid Path
Automatic Piston Wash: Yes
Pulse Dampener & Transducer: Yes
Constant Flow Algorithm
Piston Seal: Aqueous/Standard (Stainless Steel Energizer)
Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing
Flow Accuracy ........................≤ 5% of set point
(above 5 mL/min, water, 1,000 psi)
Flow Precision ........................0.5% RSD
Pulsation .................................≤ ± 5.0% @ 150 mL/min., 3,000 psi
Dimensions .............................14” W x 9” H x 22” D
(35.6 x 22.8 x 55.9 cm)
Weight .....................................50 lbs. (22.7 kg)
Condition: New
