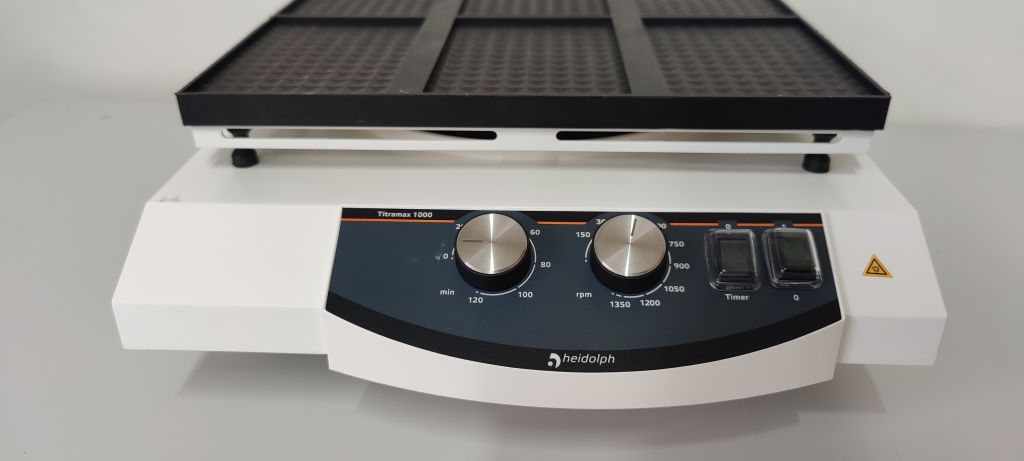

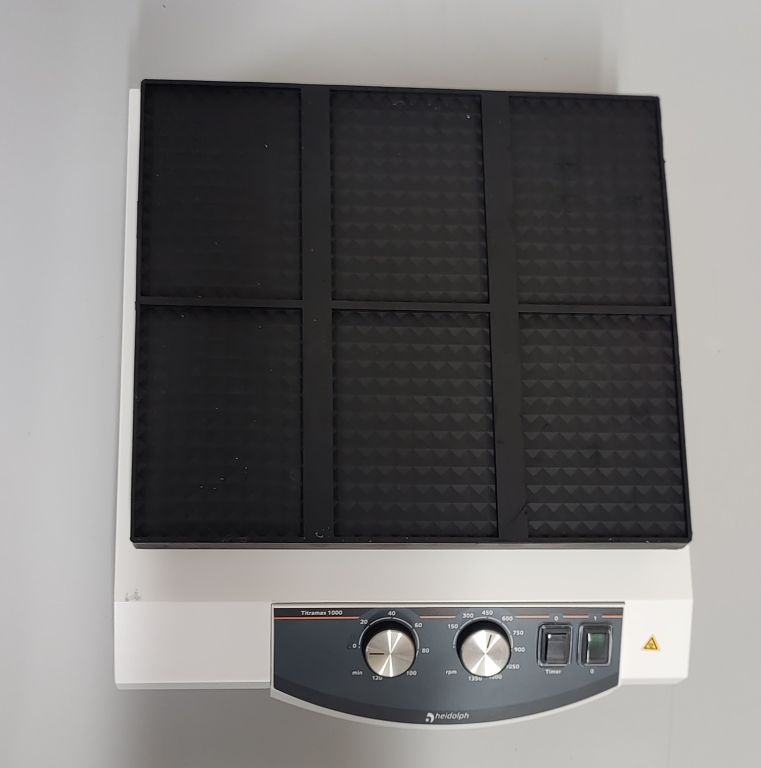

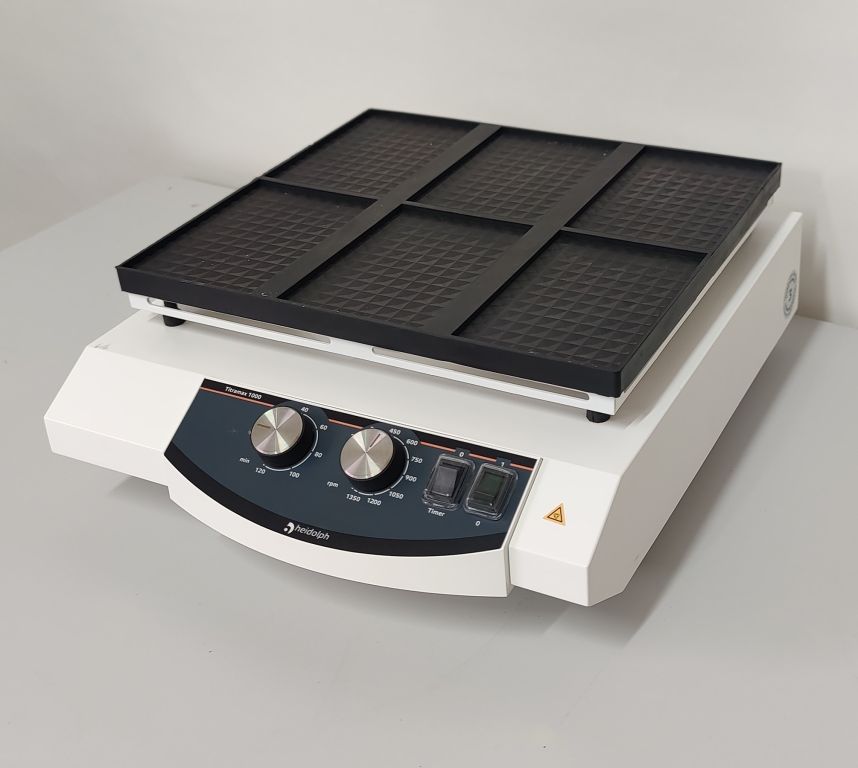

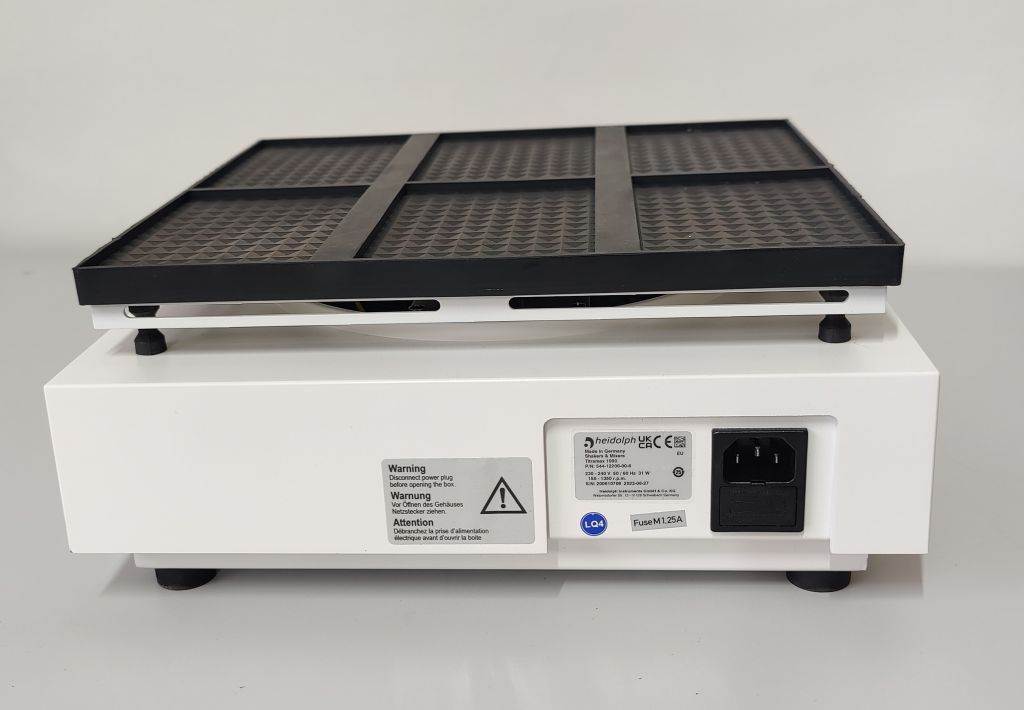

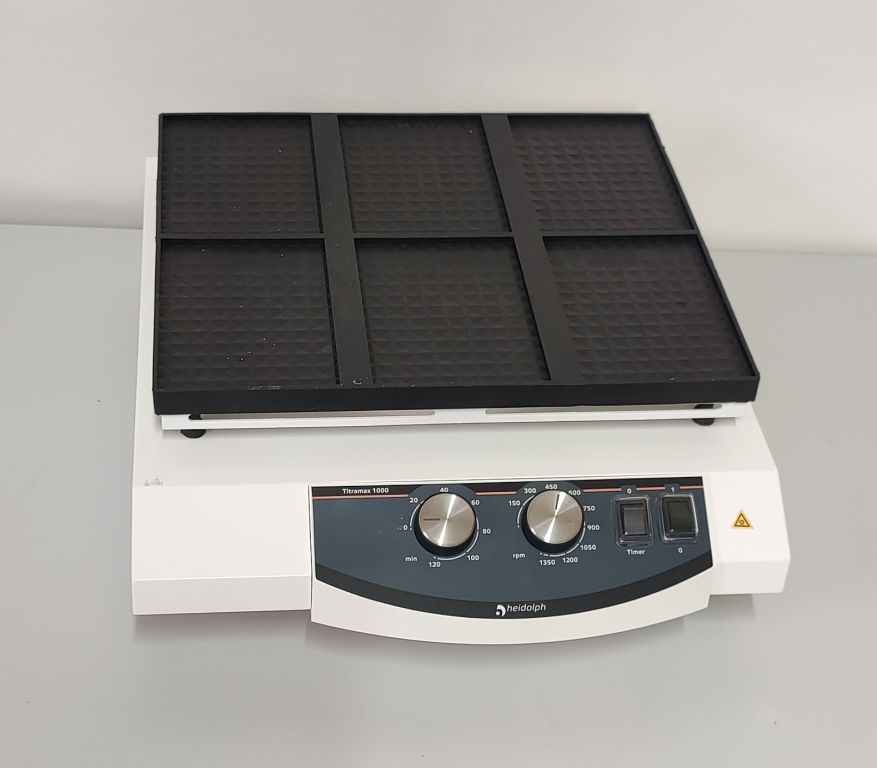

The Temperature Controlled Model
The largest model in the Titramax series incorporates all the features of the Titramax 100: a 1.5 mm shaking orbit, a rotation speed of up to 1,350 rpm, and a timer function.
With a capacity of six microtiter plates, processing a larger number of samples is possible. The option to integrate the Titramax 1000 into the modular incubation system allows for seamless temperature-controlled processes.
As with the other models, the recesses and spacing in the rubber mat make loading and unloading the plates easy.
Technical Data Sheet
Dimensions (W x H x D) 320 x 128 x 375 mm
Weight 8 kg
Maximum permissible load 5 kg
Drive Shaded-pole motor
Speed range 150 – 1,350 rpm
Protection class (EN 60529) IP30
Sound pressure level < 50 dB(A)
Rated voltage n/a
Protection class I
Overvoltage category II
Pollution degree 2
Power consumption 25 W
Operating temperature 5 °C – 31 °C at up to 80% relative humidity | 32 °C – 40 °C at up to 50% relative humidity Humidity (linearly decreasing)
Installation altitude up to 2,000 meters above sea level
Self-resetting overheat protection
Analog speed control
Usable area 290 × 258 mm
Motion type: Circular vibrating
Orbit 1.5 mm

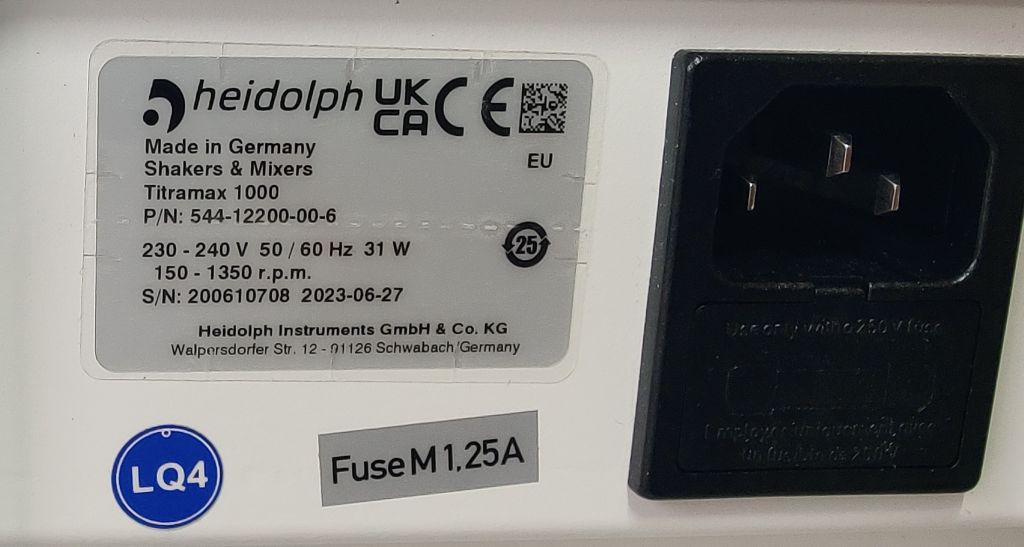

Device fuse: M 1.25 A (230 V) or T 2.0 A (115 V)
Condition: Used, very good
