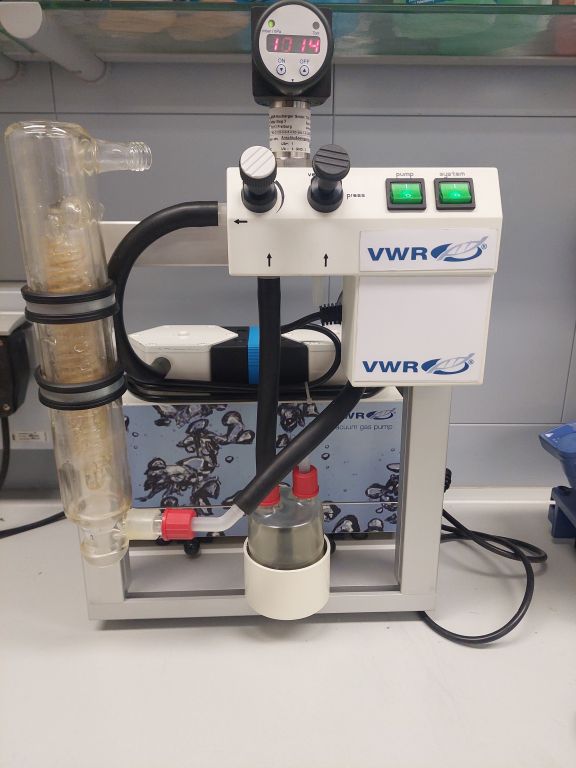

The LABOXACT® vacuum system 189-0025 is a robust and chemical-resistant complete solution for vacuum applications in laboratories and production. This device has been technically tested and is in excellent used condition. Ideally suited for distillation, evaporation and solvent recovery – even with low-boiling substances.
Key features

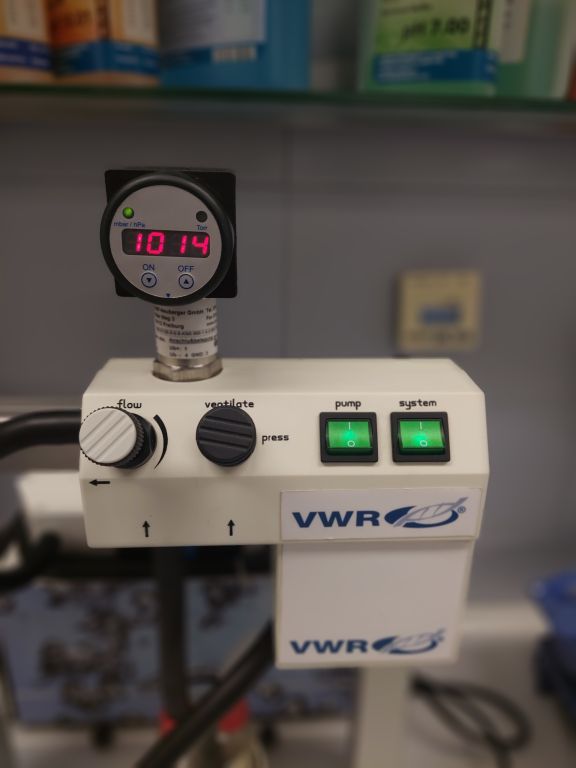

Fully equipped system: Includes vacuum pump, condenser, digital vacuum gauge, fine adjustment valve, safety and vent valves
Chemical-resistant: All parts that come into contact with media are resistant to aggressive media
Low maintenance & durable: Ideal for continuous use – even under demanding conditions
Used but tested: Technically sound, with minimal signs of wear
Compact design: Space-saving and easy to integrate into existing systems
Technical data
Flow rate at atmospheric pressure: approx. 20 l/min
Ultimate vacuum (absolute): Approx. 8 mbar
Hose connection (inner diameter): Approx. 10 mm
Materials (in contact with media) Pump head: PTFE/TFM-PTFE
Diaphragms: PTFE-coated
Valves: FFPM
Dimensions (L × W × H): approx. 442 × 305 × 481 mm
Weight: approx. 14.5 kg
Power supply: 230 V, 50 Hz
