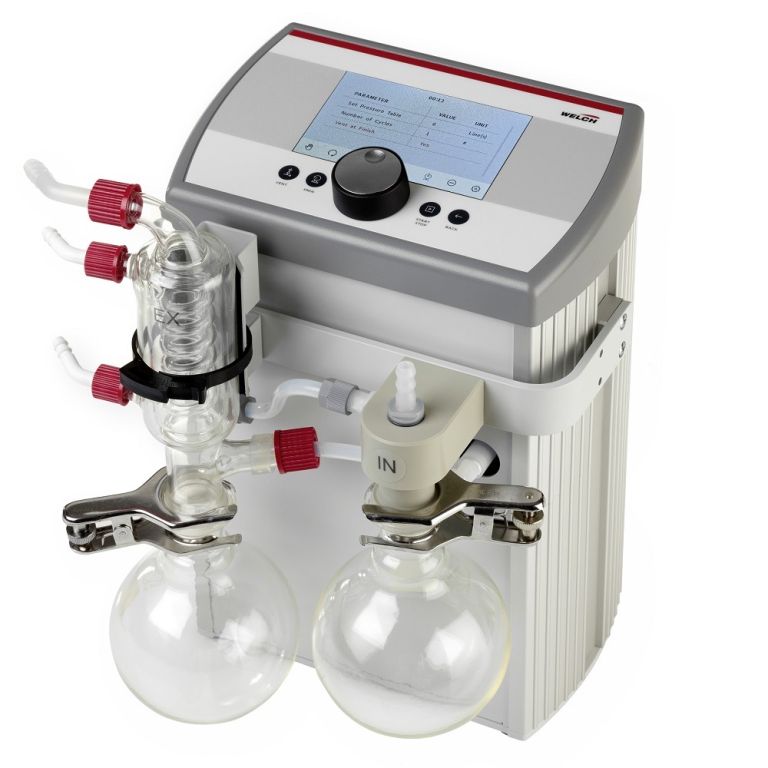

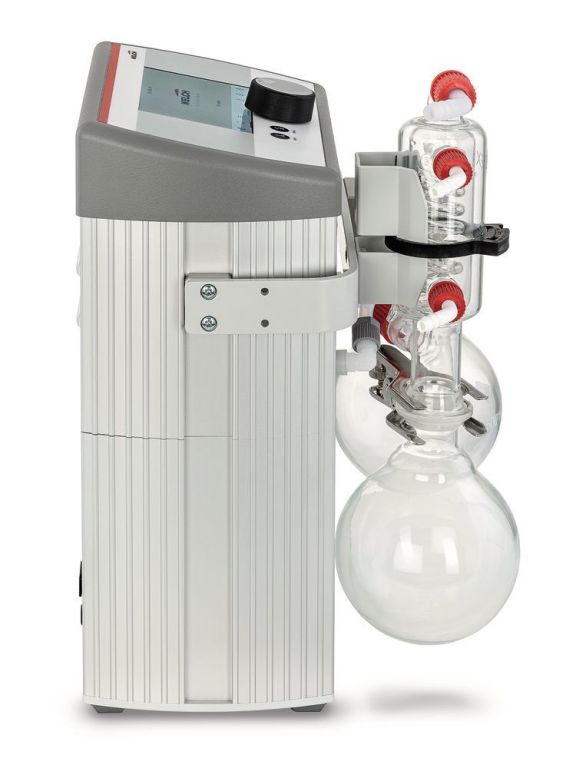

New Welch / Ilmvac LVS105T-10ef speed-controlled chemical-resistant vacuum pump with controller and separator, 1.2 m & 2 mbar
In mint condition, has only been tested.
Specially designed for rotary evaporators, distillation, filtration, vacuum ovens and vacuum drying. With chemical-resistant diaphragm vacuum pump and VCpro600 vacuum controller. For a freely selectable vacuum of ±1 mbar, the speed of the pump is continuously adjusted to the gas load.
Advantages:
- Faster process results through constant evaporation and degassing
- Automatic adjustment and control of the vacuum
- Controller with large, multilingual colour display and light/dark screen mode for optimum visibility
- Integrated solvent library with stored distillation-specific parameters and freely adjustable boiling points; storage of individual pressure curves for novel processes possible
- With communication interface for remote control/monitoring, for downloading logged process data and for software updates
- Low-noise operation due to reduction in speed

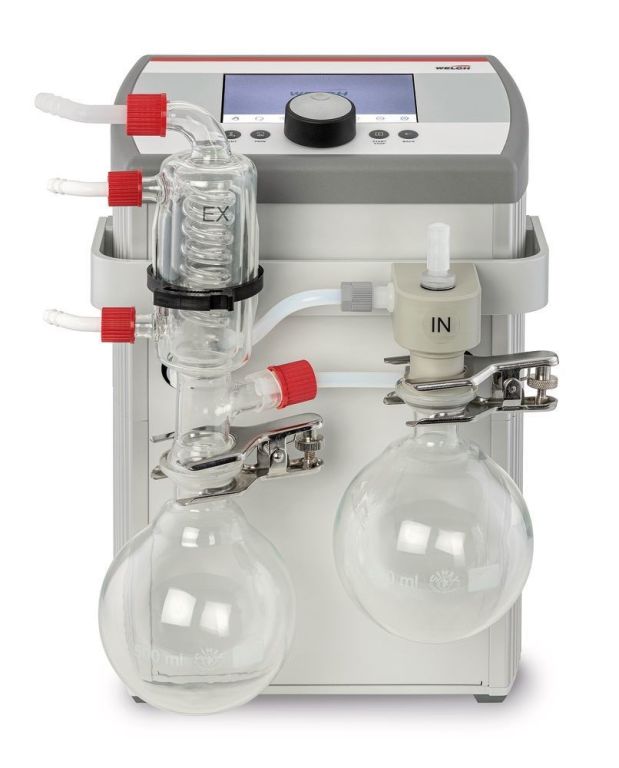

Delivery includes chemical-resistant diaphragm pump, built-in controller, ecoflex control, suction-side separator with 500 ml round flask, pressure-side intensive cooler with 500 ml round flask and safety valve.
Technical information
Type LVS 105 T-10 ef+
System LVS 105 T-10 ef+
Suction capacity (l/min) 18.0
Ultimate vacuum abs. 2.0 mbar
Connection for hose Ø inside 8 mm
Materials in contact with media Pump head: PTFE with carbon fibre reinforcement
Diaphragm: Elastomer with PTFE coating
Valves: PEEK
Seals: EPDM
Screw connections/connection elements: PP, PVDF
Vacuum hose: PTFE

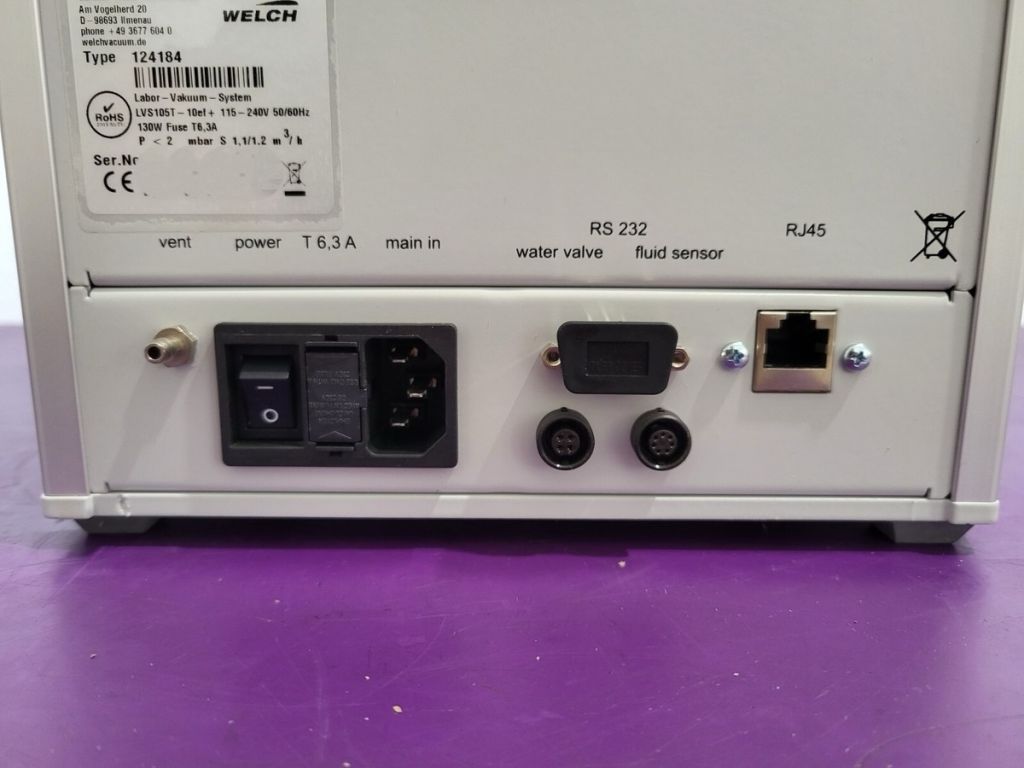

Interface RS 232, LAN
W x D x H 250 x 260 x 435 mm
Weight 9.5 kg
Mains connection 115-240 V, 50/60 Hz
